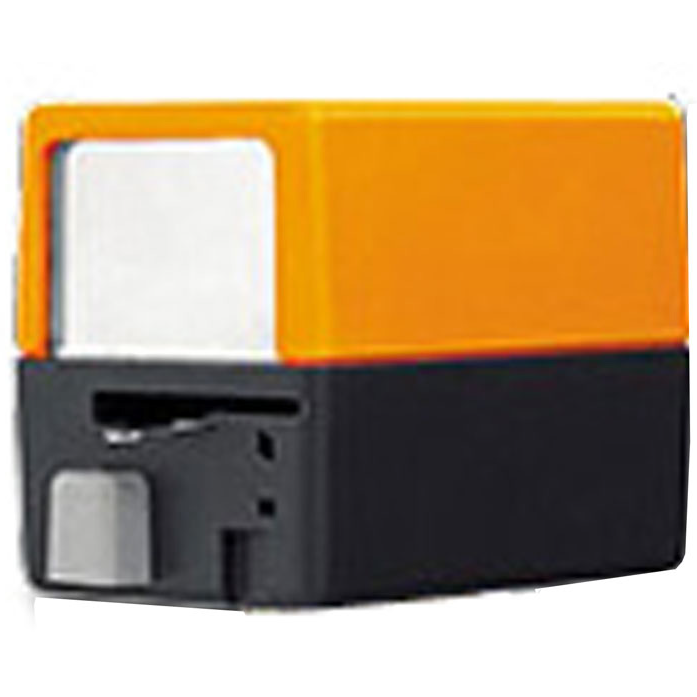

Belimo Spring Return Valve Actuator, 24 V On/Off
$241.92
Belimo ZONE24NC spring return valve actuator allows control of flow to a zone when paired with a zone valve. This valve actuator pairs well with Belimo ZONE215N series zone valves.
Out of stock
Belimo ZONE24NC spring return valve actuator allows control of flow to a zone when paired with a zone valve. This valve actuator pairs well with Belimo ZONE2 or ZONE3 series zone valves. This is the actuator only.
Technical Information
Specifications
| Actuator Type | Spring Return |
| Control Type | Modulating |
| Voltage | 24 VAC ± 10%, 50/60 Hz |
| Electrical Connection | 18” wire leads |
| Angle of Rotation | 90º |
| Ambient Temperature Range | 32°F to 104°F [0°C to 40°C] |
| Manual Override | Manual lever |
| Position Indicator | Integrated into lever |
| Running Time (motor) | 20 – 40 sec |
| Running Time (fail safe) | 5 sec |
| Housing / Material | NEMA type 1 / IP20, UL94-5VB |
| Weight | 0.4 kg |
|---|
