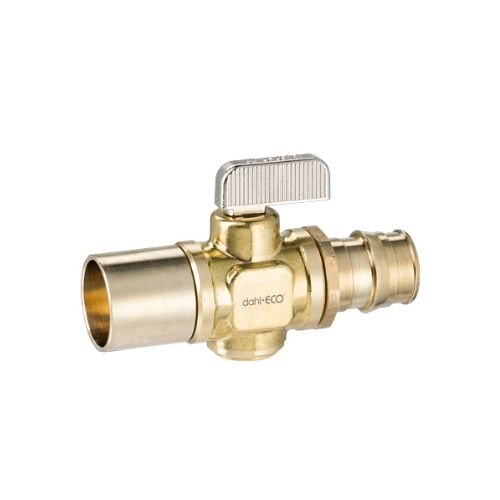

dahl 3/4″ Female Solder x 3/4″ Expansion PEX (F1960), Straight
$53.31
dahl is known to be the market leader in quality. This is evident in the weight of their products. They are all backed by a lifetime warranty and are manufactured in Canada using only North American materials. Dahl pioneered the mini-ball™ valve and continue to evolve with the times.
dahl is known to be the market leader in quality. This is evident in the weight of their products. They are all backed by a lifetime warranty and are manufactured in Canada using only North American materials. Dahl pioneered the mini-ball™ valve and continue to evolve with the times.
Features
Compact size enables closer centres on copper manifolds.
Positive Shut-Off.
Specifications
| Material | Regular Brass |
| Pattern | Straight |
| Finish | Rough Brass |
| Inlet Pipe Type | Copper Pipe or Copper Manifold |
| Inlet Size | 3/4 Female Solder |
| Outlet Size | 3/4 Expansion PEX (F1960) |
Installation Instructions
Instructions for 521-14-PRPX5
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
FEMALE SOLDER: Do not dismantle valve – solder in open position. Clean pipe and valve socket with emery cloth, & apply flux to both. Pipe must be square and bottomed in socket. DO NOT re-position valve after soldering. Clean with water and dry. Let cool before operating.
F1960 COLD EXPANSION CONNECTION FOR PEX-A or PEX-C ONLY: Follow tube manufacturer’s instructions. Warning: Do not attempt to use PEX connections with Poly-B tubing or vice versa.
| Weight | 0.27 kg |
|---|---|
| Size | 0.5 |
