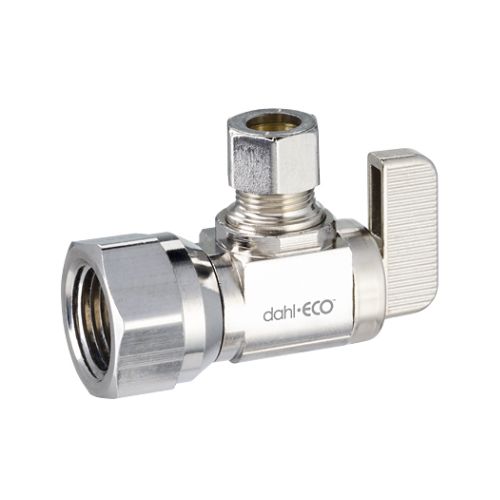

dahl 611-53-31 1/2″ Female NPT x 3/8″ OD Comp, Angle Stop
$18.45
dahl is known to be the market leader in quality. This is evident in the weight of their products. They are all backed by a lifetime warranty and are manufactured in Canada using only North American materials. Dahl pioneered the mini-ball™ valve and continue to evolve with the times.
dahl is known to be the market leader in quality. This is evident in the weight of their products. They are all backed by a lifetime warranty and are manufactured in Canada using only North American materials. Dahl pioneered the mini-ball™ valve and continue to evolve with the times.
Specifications
| Material | Lead-Free Brass |
| Pattern | Angle |
| Finish | Chrome Plated |
| Inlet Pipe Type | 1/2″ Female Iron Pipe |
| Inlet Size | 1/2″ Iron Pipe size |
| Outlet Size | 3/8 OD Comp |
Technical Information
Installation Instructions
INSTRUCTIONS:
Instructions for 611-33-31
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
NPT THREAD: Clean pipe threads and cover them with pipe dope or PTFE tape. Tighten firmly while gripping hex on end of valve. DO NOT OVER-TIGHTEN.
COMPRESSION ON COPPER PIPE: Do not use pipe dope or PTFE tape. Pipe must be clean, de-burred, round, & cut square. Slide nut, then ring, then valve onto pipe. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN. Compression on plastic tube: Follow tube manufacturer’s instructions; Special ring, nut, or insert may be required.
| Weight | 0.33 kg |
|---|---|
| Size | 0.5 |
