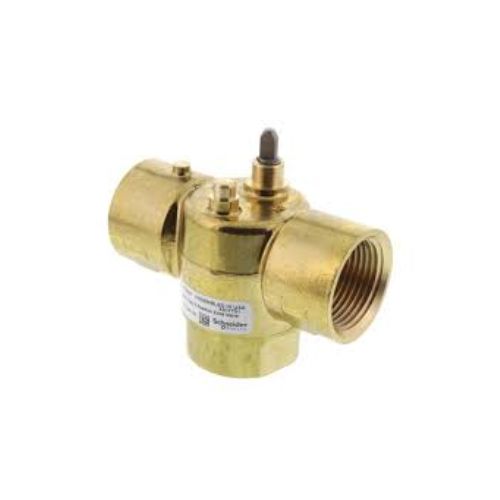

Erie® PopTop™ VT3427 1″ NPT 3-Way Zone Valve body, 7.5 CV
$144.13
Erie® PopTop™ VT3427 1″ NPT 3-Way Zone Valve body 7.5 CV
Erie® PopTop™ Motorized Actuators are suitable for the control of hot and chilled water in terminal unit applications such as fan coil units and baseboard heating.
3 in stock
Erie® PopTop™ VT3427 1″ NPT 3-Way Zone Valve body, 7.5 CV
Erie® PopTop™ Motorized Valves and Actuators are suitable for the control of hot and chilled water in terminal unit applications such as fan coil units and baseboard heating.
Features and Benefits
- One-handed engagement or removal of the motorized actuator to the valve body
- Valve actuator can be easily attached after the valve body has been installed into the system
- Mounts quickly an easily without the need of linkages or calibration
- Available in 2-way and 3-way port configurations
- Available factory coupled, or as individual bodies and actuators
- Direct replacement for all existing PopTop™ applications
- Rugged 300 PSG rated brass forged body design for long life
Requires Erie PopTop Actuator Sold Separately
Technical Information
Specifications
| Series Application | Zone Valve |
| Body Style | 3-Way |
| Size | 1″ |
| Connection Type | Threaded NPT |
| Flow Setting | 7.5 Cv |
| Temperature Range | 32°F to 200°F (Fluid) @ 104°F (Ambient) (0°C to 93°C @ 40°C) |
| Weight | 0.5 kg |
|---|
