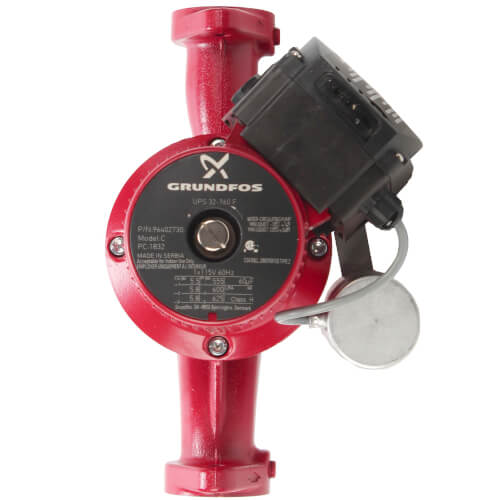

Grundfos UPS 32-160/2, 3 Speed Circulator, 3/4 HP
$2,586.60
Grundfos UPS32-160 three-speed circulator pumps are designed for circulation of liquids in heating and air-conditioning systems and are also used for central and district heating systems. The UPS pumps provide reliable and maintenance-free operation as well as a low noise level and energy consumption.
Available on backorder
Grundfos UPS32-160 three-speed circulator pumps are designed for circulation of liquids in heating and air-conditioning systems and are also used for central and district heating systems. The UPS pumps provide reliable and maintenance-free operation as well as a low noise level and energy consumption.
Suitable for
- Commercial air conditioning
- Commercial heating
- Commercial hot water recirculation
- District cooling
- District heating
- Domestic heating
- Cooling
- Industrial boiler systems
- Industrial heating
Technical Information
UPS Series 200 Install Instructions
Features
- Note: This circulator requires:
539605: 1-1/2″ Cast Iron Flange Set (For UP43 Flange Mounted Pumps Only)- Cast Iron
- GF 40/43 Flange Mount
- Model: UPS32-160/2
- Normal Flange Size (in.): 1.5″
- Motor HP: 3/4
- Voltages: 115
- PH: 1
Specifications
| Application | Heating or Cooling |
| Material | Cast Iron |
| Voltage | 115 Volts |
| Type | 3 Speed Pump |
| Features | Built-in Check Valve |
| Horsepower | 3/4 hp |
| Flow Range | 0 – 76 GPM |
| Max Head (Ft) | 45 Ft |
| Head Range (Ft) | 0 – 45 Ft |
| Max. Pressure (PSI) | 145 PSI |
| Temperature Range (F) | 36º – 230º F |
| Impeller | Composite |
| Weight | 7.87 kg |
|---|
