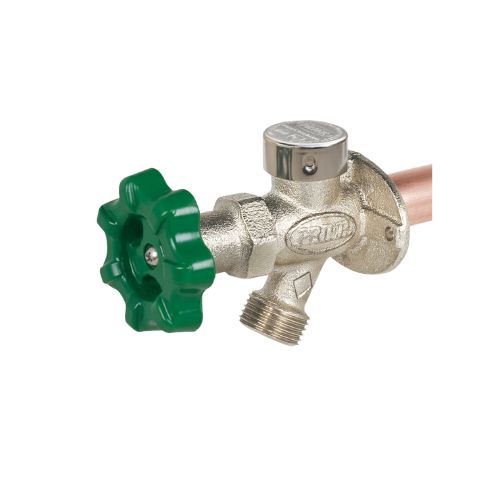

Prier P164 1/2″ PEX Crimp (F1807) Quarter Turn Wall Hydrant 14″ Length

Prier P164 1/2″ PEX Crimp (F1807) Quarter Turn Wall Hydrant 14″ Length. PRIER P-164 provides a year round source of water in areas that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. The P-164 has the added benefit of an easy quarter turn operation that features a proven
compression type seal. Additionally, the P-164 features a soft grip operating handle for easy operation in wet conditions and cold weather.

Features

• Anti-siphon aluminum vacuum breaker with EPDM backflow preventer and backflow check valve
• Quarter-turn soft-grip coated cast aluminum handle
• Wide and enclosed screw holes easily secure mounting screws
• Per ASSE 1019, pressure rated to 125 PSI, temperature to 140°
• Integral cast flange with built-in drainage pitch
• Solid brass body, valve stem cap, seat and stem ends
• Satin nickel plated body maintains attractive finish
• Stainless steel screws
• Lock shield cap
• AFG teflon with graphite packing for easy maintenance
• Standard “OO” size seat washer
• Each valve air-tested at factory for leak-free quality
• Spout aligning mark with manufacturer’s date code

Downloads

P-164-Brochure
