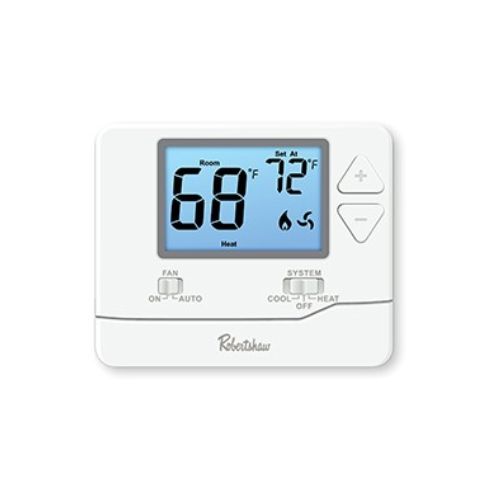

Name: Robertshaw RS8110 Single Stage 1 Heat 1 Cool Non-programable Thermostat
SKU: RS8110
Availability: InStock

Robertshaw RS8110 Single Stage 1 Heat 1 Cool Non-programable Thermostat

$56.37

Robertshaw RS8110 Single Stage 1 Heat 1 Cool Non-programable Thermostat is easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS8110 non-programmable wall thermostat. Single Stage – 1 Heat / 1 Cool

Features

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Large, easy-to-read 4.6-square-inch blue backlit display
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Specifications

Series Application	Single-Stage 1 Heat / 1 Cool Non-Programmable
Factory Part Number	RS8110
UPC	662013228194
Dimensions	4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
Mounting Type	Wall or junction box
System Fuel Source	Gas, electric or oil
Heat Pump Compatibility	Systems without auxiliary or emergency heat
Millivolt Application Compatibility	Yes
Temperature Range	41°F to 95°F (5°C to 35°C)
Control Temperature	44°F to 90°F (7°C to 32°C)
Display Accuracy	+- 1°F (at 68°F) / +- 1°C (at 20°C)
Power Source	24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)
Terminals	Rh, Rc, C, Y, W, G, O, B
