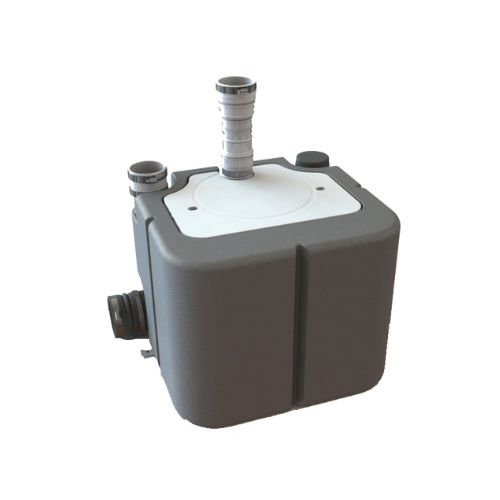

Saniflo 022 Saniswift Pro 1/3 HP Residential or Commercial Heavy-Duty Gray Water Drain Pump
$467.74

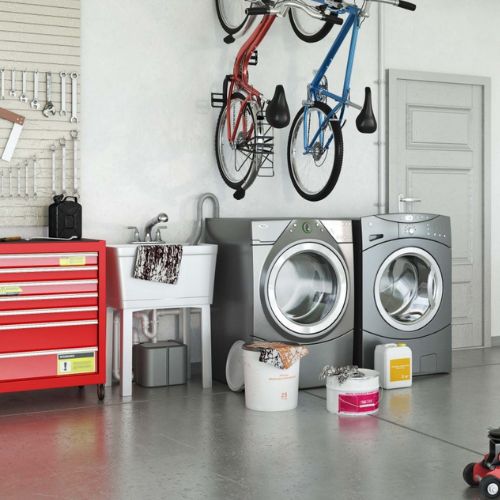

Saniflo 022 Saniswift Pro 1/3 HP Residential or Commercial Heavy-Duty Gray Water Drain Pump is an easy laundry room solution. Perfect use for Laundry/Sink/Shower – HDPE Easy Access – Low inlets.
Saniflo 022 Saniswift Pro 1/3 HP Residential or Commercial Heavy-Duty Gray Water Drain Pump is an easy laundry room solution. Perfect use for Laundry/Sink/Shower – HDPE Easy Access – Low inlets.
The IAPMO listed Saniswift Pro drain pump is used to pump gray water away from a variety of both residential and commercial applications. The system is able to discharge the waste up to 14 feet vertical and/or 140 feet horizontal. This model is powerful and economical with a compact design and one 1.5″ top inlet and 2″ low inlets which makes it perfect for installations anywhere you can imagine.
Features
- Easy access to major components while installed
- ↑ 14 Ft ↑ and/or ← 140 Ft →
- Low inlets for easy installation
- CSA & IAPMO listed for nationwide compliance
- Powerful, economical and compact design with 2″ low inlets
Specifications
| Part number | 022 |
| Max. horizontal discharge | 14 ft |
| Max. vertical discharge | 140 ft |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Amperage | 4.5 Amps (Max) |
| Motor | 0.3 HP oil-filled thermally protected motor |
| Capacitor rating | 30 microfarad |
| Operating temperature | 140°F |
| Power cord length | 48 inches |
| Noise level (measured at 3 ft.) | ≤ 44 dBA (Lp) |
| Discharge pipe diameter | 1” – 1–1/2” |
| Discharge rate at 15 ft | @14 Ft : 18 GPM |
| Discharge rate at 3 ft | 24 GPM |
| Shut-off head | 25 ft |
| Normal running time | 3-5 seconds (Short bursts) |
| Capacity | 2.9 gallons / 11 liters |
| Inlets diameters | 2” (sides) |
| Ventilation diameter | 1-1/2″ vent (top) |
| Type of activation | Pressure switch/ circuit board |
| Shower/bath base height | 6″ min |
| Weight | 16 lbs / 7.25 kg |
| Certifying agencies | CSA (IPC, NSPC), IAPMO (UPC) |
Downloads and Brochure
