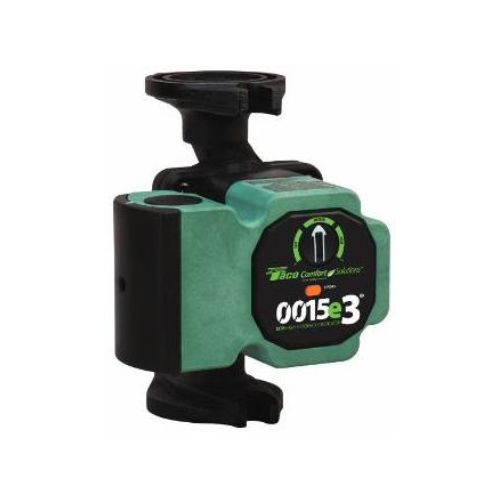

Taco 0015 3 Speed Cast Iron Circulator, 1/20 HP
Original price was: $314.10.$240.00Current price is: $240.00.
The rugged Taco 0015 3-Speed circulator is specifically designed to provide dial-in precision to meet the requirements of any hydronic heating system, including radiant and higher head systems. In radiant applications, its’ 3-Speed switching capability gives you the fine tuning control to match a wide combination of tube diameters and lengths of run.
The Taco 0015 delivers the highest starting torque in its class and is a direct replacement for the Grundfos UPS15-58 and 15-55FC. The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today’s hydronic heating systems. Its’ 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. Includes a removable,uni-body Integral Flow Check (IFC®) that prevents gravity flow, reduces installation costs and improves pump performance.
Technical Information
0015 Installation Instructions
Features
- 3 Speeds (Low, Medium and High)
- 1/20 Horse Power
- Flanged connections
Specifications
| Application | Heating |
| Material | Cast Iron |
| Voltage | 115 Volts |
| Type | 3 Speed Pump |
| Features | Built-in Check Valve |
| Horsepower | 1/20 hp |
| Flow Range | 0 – 18 GPM |
| Max Head (Ft) | 17 Ft |
| Head Range (Ft) | 0 – 17 Ft |
| Max. Pressure (PSI) | 125 PSI |
| Temperature Range (F) | 40º – 230º F |
| Warranty | 3 Year Warranty |
| Weight | 3.29 kg |
|---|
