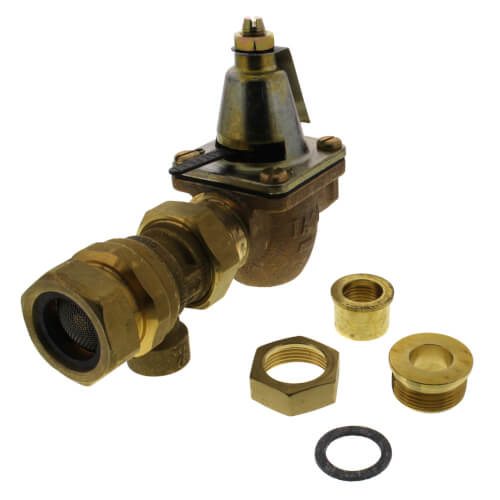

Taco 1/2″ NPT Combination Boiler Feed Valve & Backflow
$267.84
The Taco 3492-050-BT1 1/2″ Female NPT Brass Combination Boiler Feed (Pressure reducing) and backflow preventer automatically feeds water into a system whenever pressure in the system drops below the pressure setting of the valve.
Out of stock
The Taco 3492-050-BT1 1/2″ Female NPT Brass Combination Boiler Feed (Pressure reducing) and backflow preventer automatically feeds water into a system whenever pressure in the system drops below the pressure setting of the valve. The Dual Control combines the Boiler Feed Valve with an in-line Pressure Relief Valve connected at the outlet end.
Technical Information
Taco-3492-050-BT1-BC1-BROCHURE
Features
- Fast Fill Rate
- Exclusive Fast Fill Lever Lock
- Built-In Check to Prevent Emptying the System if Incoming Pressure Fails
- Adjustable Set Pressure of 10 to 25 psi
- Pressure Setting Adjustment Separated from Fast Fill Lever for Easy, Fast Adjustment
- ASSE Listing 1012-2009
- SA Listing B64.3-11
Specifications
| Maximum Working Pressure | 100 PSI |
| Minimum Pressure Setting | 10 PSI |
| Maximum Flow Rate | 25 GPM |
| Maximum Temperature | 210º F |
| Connection Type | 1/2″ Female NPT |
| Weight | 1 kg |
|---|---|
| Size | 0.5 |
