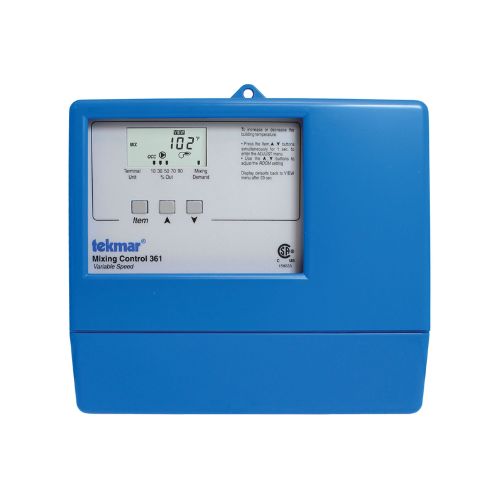

Tekmar Mixing Control 361 – Variable Speed
$1,605.07
The Mixing Control 361 is designed to operate a mixing pump using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for Boiler Return Protection with full reset. This control regulates a single heating water temperature through Mixing Outdoor Reset. It provides mixing by speeding up or slowing down a single permanent capacitor (standard wet rotor) circulator, and provides control of the mix system pump.
Features
- Advanced settings to fine-tune building requirements
- Automatic Boiler Differential
- Boiler Load control
- CSA C US certified (approved to applicable UL standards)
- Indoor Temperature Feedback (with optional indoor sensor)
- Outdoor Temperature Reset
- Powered mixing system pump output
- Quick setup for easy installation and programming of control
- Setback input for energy savings
- Test sequence to ensure proper component operation
- User comfort adjustment to increase or decrease building space temperature
- Variable speed pump control
- Warm Weather Shut Down
Technical
Specifications
| Control | Microprocessor control. This is not a safety (limit) control |
| Packaged weight | 3.0 lb. (1380 g) |
| Dimensions | 6-5/8″ H x 7-9/16″ W x 2-13/16″ D (170 x 193 x 72 mm) |
| Enclosure | Blue PVC plastic, NEMA type 1 |
| Approvals | CSA C US, meets class B: ICES & FCC Part 15 |
| Ambient conditions | Indoor use only, 32 to 104°F (0 to 40°C), RH ≤90% Non-condensing |
| Power supply | 120 V (ac) ±10%, 50/60 Hz, 1650 VA |
| Variable pump | 120 V (ac) 2.4 A (FLA) 5 A (LRA) fuse T2.5 A 250 V |
| Relays | 240 V (ac) 10 A 1/3 hp |
| Demand | 20 to 260 V (ac) 2 VA |
| Sensors | NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892 |
| -Included | Outdoor Sensor 070 and 2 of Universal Sensor 082 |
| -Optional | tekmar type #: 033, 076, 077, 084 |
| Warranty | Limited 3 Year Warranty |
| Weight | 1.5 kg |
|---|
