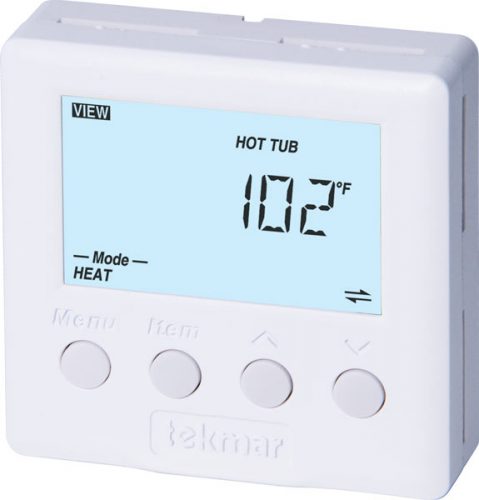

tekmarNet® 4 Setpoint Control 162 – One Stage Heat/Cool
$441.00
The tekmarNet® 4 Setpoint Control 162 is designed to operate a single piece of heating or cooling equipment in order to maintain a setpoint temperature. It can be used in applications, including heating a swimming pool, maintaining a chilled water storage tank, and maintaining a constant slab temperature in a commercial car wash bay.
Out of stock
This product regulates a constant water temperature for heating or cooling using one of 6 preset modes (setpoint on/off, hot tub, DHW, setpoint PWM, floor, pool). It has 2 relays (rated at 24 V, 2 A) and uses relay #1 to control the heating/cooling device, while relay #2 can be used for devices such as a DHW re-circulation pump.
Features
- 5 different levels of priority
- CWSD (if connected to tekmarNet®network with outdoor sensor)
- DHW tank operation
- Exercising
- Floor operation
- Hot tub operation
- On / Off differential
- One stage heat or cool
- Pool operation
- Programmable Setback Schedule
- Pulse Width Modulation
- Scenes supported
- System pump control
- Temperature sensor input
- WWSD (if connected to tekmarNet®network with outdoor sensor)
- tekmarNet® 4 and tekmarNet® 2 compatible
Technical
Specifications
| Control | Microprocessor control. This is not a safety (limit) control |
| Packaged weight | 0.5 lb (230 g) |
| Dimensions | 2-7/8″ H x 2-7/8″ W x 13/16″ D (73 x 73 x 21 mm) |
| Enclosure | White PVC plastic, NEMA type 1 |
| Approvals | CSA C US, meets Class B: ICES & FCC Part 15 |
| Ambient conditions | Indoor use only, 32 to 122°F (0 to 50°C), RH ≤92% to 104°F (40°C), and 50% above 104°F (40°C), Altitude <9840 ft. (3000 m), Pollution Degree 2 |
| Power supply | 24 V (ac) ± 10%, 50/60 Hz, 3.2 VA, NEC / CEC Class 2 |
| Relays | 24 V (ac) 2 A |
| Sensors | NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892 |
| -Included | Universal Sensor 071 |
| -Optional | tekmar type #: 071, 078, 082, 083 |
| Warranty | Limited 3 Year Warranty |
| Weight | 1 kg |
|---|
