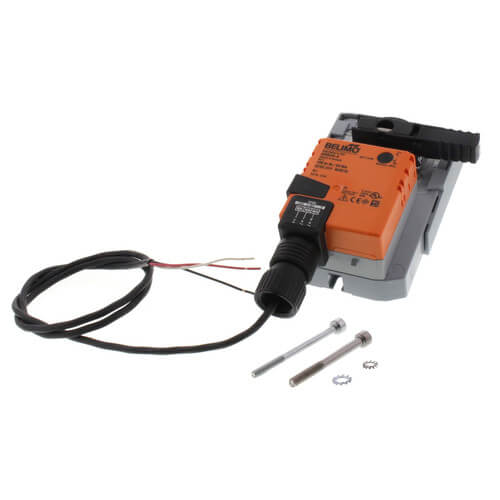

Belimo On/Off, Floating Point, Non-Spring Return 24V, ARB24-3
$643.68
Belimo on/off floating point non-spring return valve actuator, 24 V has a brushless DC motor and a 5 year warranty.
Out of stock
Belimo on/off floating point non-spring return valve actuator, 24 V has a brushless DC motor and a 5 year warranty.
Can be used with 2-way Characterized Control Valves and 3-way Characterized Control Valves
Technical Information
Belimo 2-Way & 3-Way Characterised Control Valves
Specifications
| Actuator Type | Non-spring Return, on/off Floating Point |
| Control Type | Modulating |
| Voltage | 24 VAC ± 10%, 50/60 Hz |
| Electrical Connection | 3ft [1m], 18 GA plenum cable with 1/2” conduit connector |
| Angle of Rotation | 90º |
| Ambient Temperature Range | -22°F to 122°F [-30°C to 50°C] |
| Manual Override | External Push Button |
| Position Indicator | Integrated into Handle |
| Running Time (motor) | 90 sec |
| Direction of Rotation (motor) | Reversible with built-in switch |
| Housing / Material | NEMA 2, IP54, UL Enclosure Type 2 |
| Weight | 0.6 kg |
|---|
