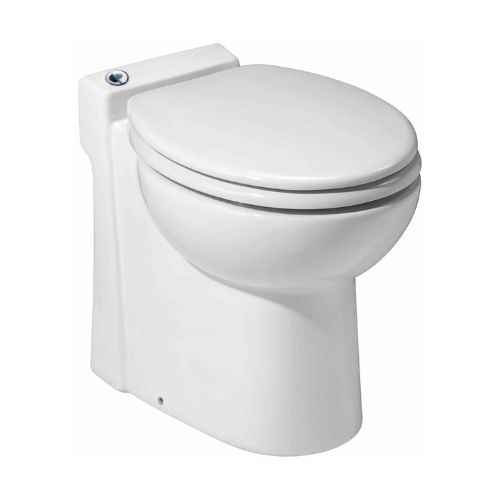

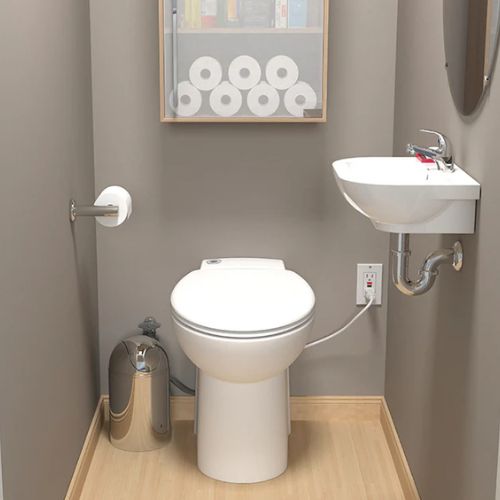

Saniflo 023 Sanicompact Toilet with built in Macerator for 2 piece Bathroom

Saniflo 023 Sanicompact Toilet with built in Macerator for Half-bathroom (2pcs). Water Saving dual flush handle for gray ad black water discharge. Install a half bathroom up to 9 feet below the sewer line, or even up to 120 feet away. Self-contained macerating system for residential applications. The blade is made out of a hardened stainless steel material which eliminates the need for any service or replacement. Toilet Seat Included

Features

• For half or two piece bathroom applications
• 1 inlet: 1-1/4” (toilet discharge integrated)
• Discharge ↑ 9 Ft ↑ and/or ← 120 Ft →
• Silent (53 dBa)
• Certifications: CSA (IPC, NSPC)
• Toilet Seat Included
• 4 Years limited warranty
• Made in France

Specifications

Pump type: Macerator
Electrical: 120 V – 60 Hz / 7.2 Amps (Max)
Motor: 1/2 HP oil-filled thermally protected motor
Capacitor rating: 45 microfarad
Operating Temperature: 95°F (110°F Max.)
Power cord length: 59 inches
Noise level: ≤53 dBA (Lp) (measured at 3 ft.)
Discharge pipe diameter: 1”
Discharge rate at 9 ft: 24 GPM
Discharge rate at 3 ft: 31 GPM
Normal running time: 24 sec (18 sec ECO mode)
Capacity: 0.8 gallons / 0.3 liters
Inlets: 1–1/4” sink connection (on motor case)
Method of activation: Push button / circuit board
Weight: 64 lbs / 29 kg (Bowl with motor)
Certifying agencies: CSA (IPC, NSPC)
Connections: Sink

Downloads and Brochures

Sanicompact Product Sheet

Sanicompact Installation Manual
